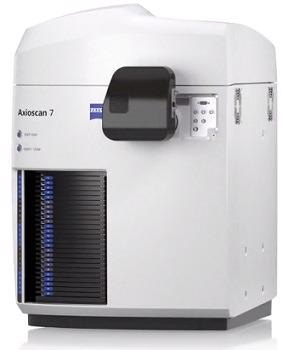

With the help of Axioscan 7 from ZEISS, it is possible for users to digitize their thin sections. It is a trustworthy and reproducible approach to making high-quality and digitized petrography data in transmitted and reflected light.
It has been specially developed for petrographic analysis, the Axioscan 7 integrates unique motorized polarization acquisition modes with unparalleled speed and a rich software ecosystem available for analysis, visualization and collaboration.
It is a completely automated acquisition, equipped with ZEISS quality, which guarantees high image quality constantly, even while processing thousands of samples. Motorized plane and cross-polarization enable both pleochroism and birefringence to be examined, while circular polarization enables the quick evaluation of characteristic maximum birefringence irrespective of grain orientation.
Discover the New Possibilities in Automated Petrography
- Quick scanning of up to 100 slides in a single run
- Intuitive scan profiles with user-friendly functionalities
- Automated scan performance can be done for continuous 24/7 operation
- Rapid switching is possible among brightfield and polarization imaging modes
Unique Technology for Polarization Microscopy
A Variety of Super-fast Imaging Modes
The ground-breaking motorized stage and image acquisition system enables automatic switching between various brightfield imaging modes to adjust to the different needs of users’ applications. All data processing takes place inline to enable improved datasets of a manageable size that are ready for analysis, transfer or distribution as soon as the data acquisition is completed.
- Circular and linear polarization is currently available
- Enhanced sample detection and focusing
- Intensely advanced scan speeds available in all brightfield imaging modes

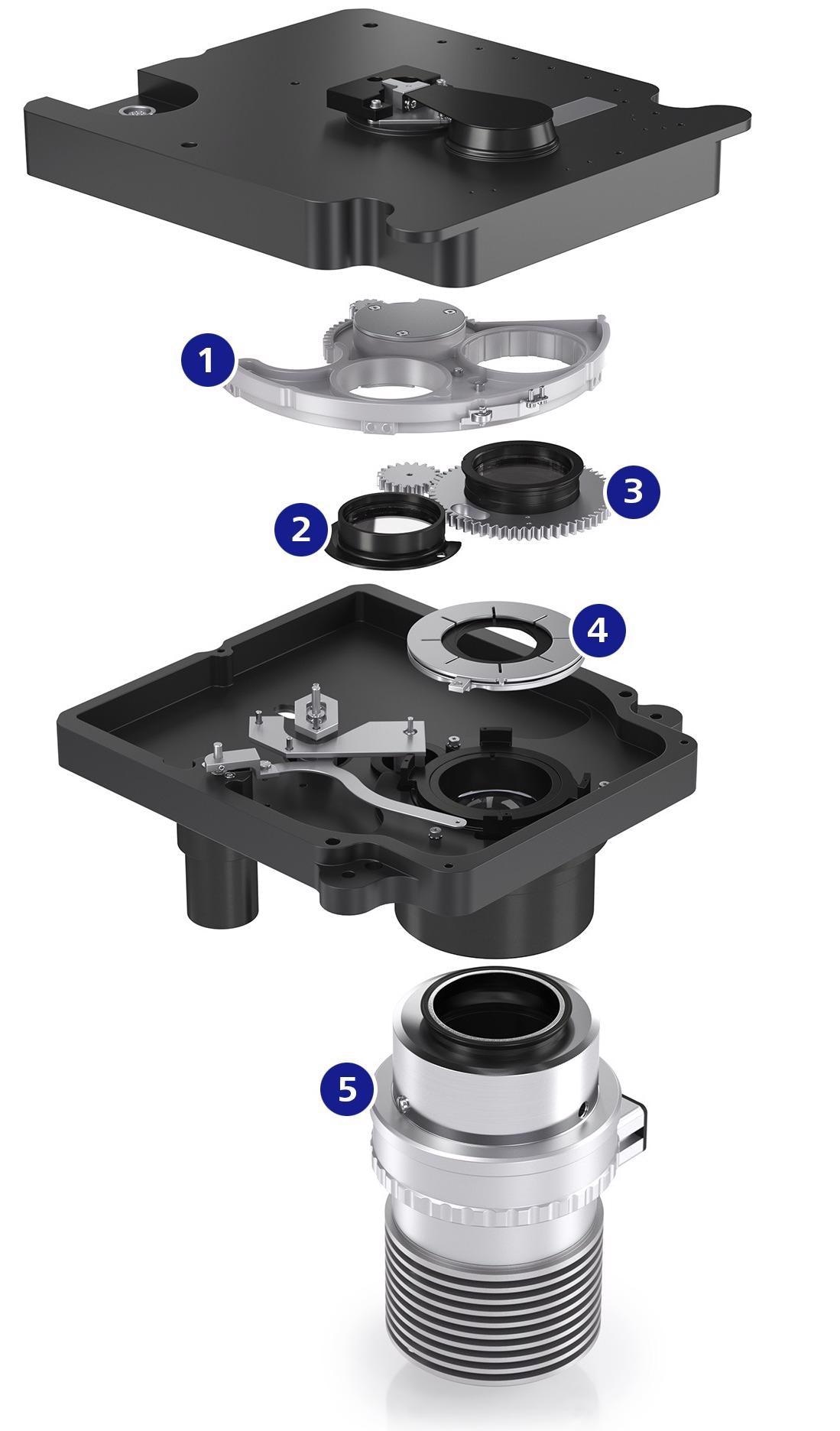

The Axioscan 7 brightfield imaging performance is driven by a motorized condenser and a powerful white light source: 1) Motorized modulator disc, 2) Circular polarizer, 3) Motorized linear polarizer, 4) Motorized aperture diaphragm, 5) WL-LED light source. Image Credit: Carl Zeiss Microscopy GmbH
Visualize Complex Digitized Petrographic Data
With the help of the new ZEN Pol Viewer display, users can go beyond the standard petrographic microscope to navigate the rich petrographic thin sections datasets. Also, it will automatically synchronize image rotation such that the sample emerges exactly as it would in a conventional petrographic light microscope.
This streamlines the learning process in teaching surroundings, in the laboratory and online, and makes a captivating petrographic experience.
Applications
ZEISS Axioscan 7 at Work
Multichannel acquisition of geological thin sections can be performed. Various forms of polarization illumination could be utilized to stress various features. Plane polarized light (PPL) displays entire crystal color, habit and pleochroism. Crossed polarized light (XPL) at multiple orientations enables extinction angle and birefringence to be evaluated.
Circular polarization enables optimum birefringence to be noted irrespective of grain orientation. All channels have been aligned with the help of strong computational algorithms during acquisition, thereby making the resulting data ideal for ensuing segmentation and analysis.

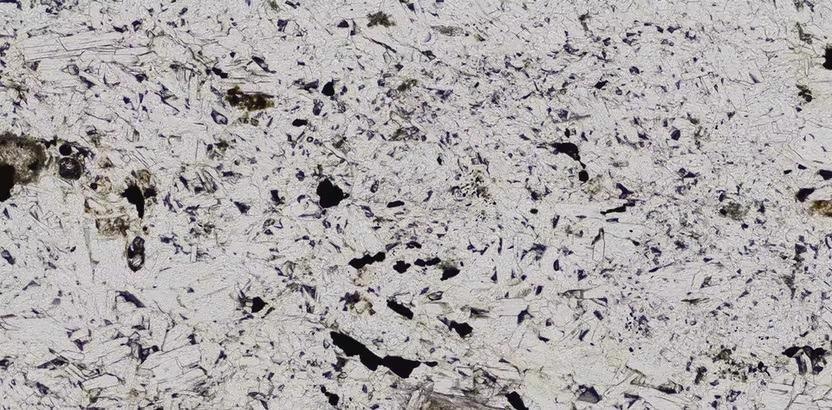

Plane Polarized Light (PPL). Image Credit: Carl Zeiss Microscopy GmbH

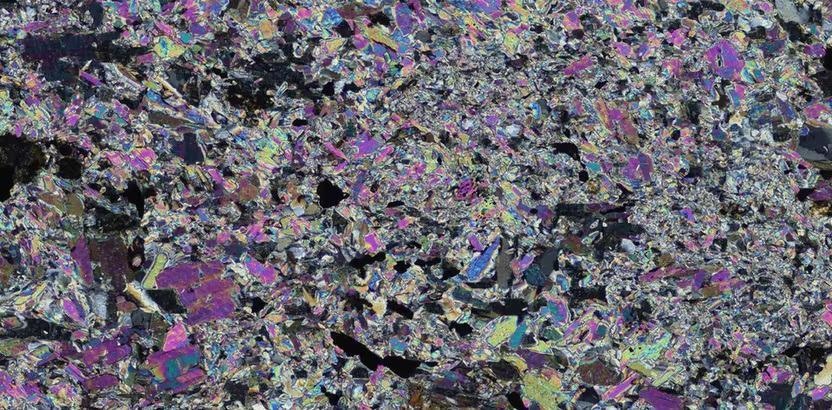

Cross Polarized Light (XPL). Image Credit: Carl Zeiss Microscopy GmbH

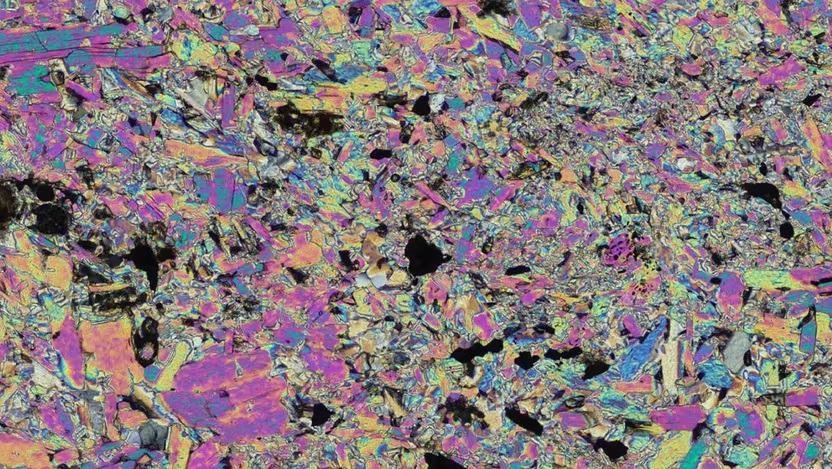

Circular Polarization. Image Credit: Carl Zeiss Microscopy GmbH

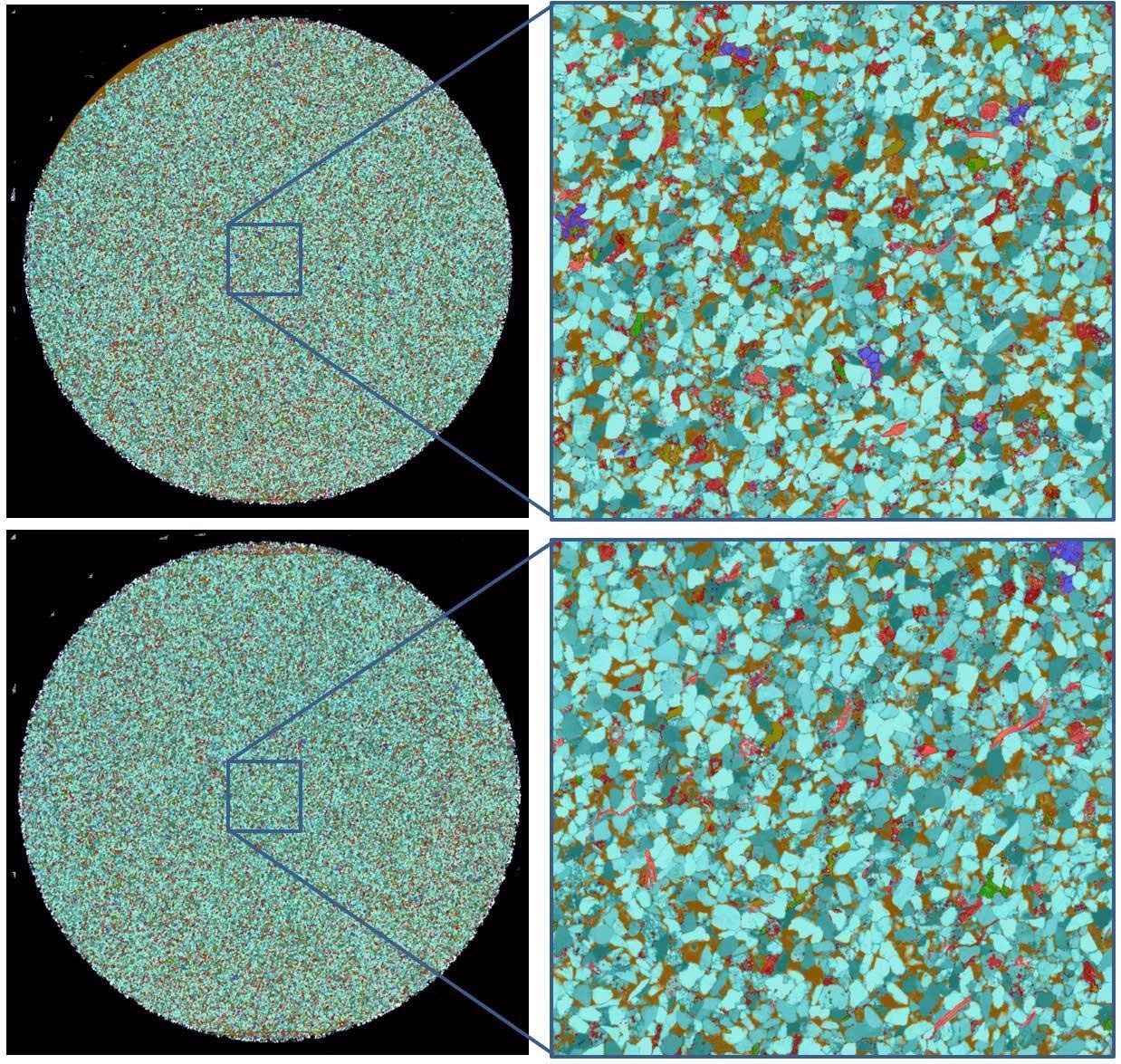

Automated machine-learning-based mineral classification with the help of a single ZEN Intellesis model is employed on two sandstone samples.
Both, modal mineralogy and pore or grain sizes can be quantified and reported automatically.
Image Credit: Carl Zeiss Microscopy GmbH
