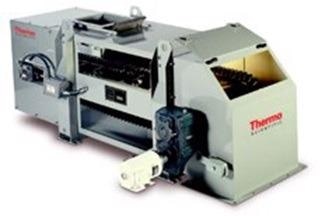

Ramsey Model 90-125 Mid-Range Weighbelt Feeder

The Thermo Scientific™ Ramsey™ Model 90-125 Mid-RangeWeighbelt Feeder is designed for industrial weighfeeding applications with moderate feed rates and belt loading requirements to help achieve critical product quality metrics.

The unique design provides extremely accurate monitoring, blending and control capabilities for your operation which reduces material waste, maintains blend consistency and enhances profits.

The Ramsey Model 90-125 Feeder accommodates flow rates of approximately 0.5 metric tons (0.5 tons) per hour up to 91 metric tons (100 tons) per hour, and belt loadings of 15 kg/m (10 lb/ft) to 170 kg/m (72 lb/ft).


  • Series 30 single-idler, pivotless weighframe provides accurate measurement of processed materials.
  • Cantilevered frame permits quick, easy removal of the feeder’s vulcanized endless belts for cleaning, maintenance and belt replacement.
  • Formed channel frame provides a sturdy and rugged weigh structure for precise weighing.
  • Choice of four belt widths from 457 mm (18 in) to 914 mm (36 in).
  • Customizable feeder lengths to fit your application from 1,524 mm (5 ft) to over 4,572 mm (15 ft).
  • Construction material: carbon steel or stainless steel.
  • Speed drives: constant or variable.
  • Structure design: open, partially open, or fully enclosed.
