Stationary compactors manufactured at Bondtech are superior in quality and suitable for handling domestic, medical, chemical and industrial wastes. Advanced electrical, hydraulic and mechanical systems are used in Bondtech mobile or stationary compactors. These compactors are designed to incur the lowest possible maintenance and service expenses.
The optimized dimensions of Bondtech compactors allow considerable floor space to be saved. Loading and emptying can be done easily and rapidly using a loader truck. This equipment is enclosed, thus ensuring safe and hygienic operating conditions. It is designed to handle a significant amount of waste as it is capable of reducing waste volumes by up to six/one times. Furthermore, issues such as infestation, wind scatter, spillage, odors or fire risk can be eliminated or reduced with Bondtech compactors.

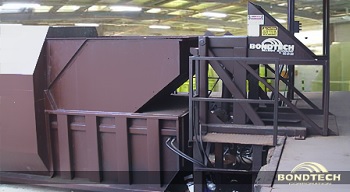

Bondtech Waste Compactor
BTT/SC - Self Contained Compactor
The key features of BTT/SC - Self Contained Compactors are listed in the following table:
| Length |
12' to 24' |
| Width |
87" to 99" |
| Height |
83" to 103" |
| Container Capacity |
9 to 36 Cu. Yds. |
| Compactor Capacity |
1 to 2.5 Cu. Yds. |
| Cycle Time |
39 Seconds to 46 Seconds |
| Charge Opening |
29" x 28" to 42" x 53" |
| Line Pressure |
2000 PSI to 2100 PSI |
| Max Ram Force |
19610 LBS to 58520 LBS |
| Max Line Pressure |
2510 PSI to 2720 PSI |
| Pump |
4.5 GPM to 11.5 GPM |
| Motor |
5 HP/3-Volt-3P |
| Shipping Weight |
4850 LBS to 9983 LBS |
BTT/CX - Stationary Compactor
The following table summarizes the key features of BTT/CX - Stationary Compactor:
| Length |
46" to 17'2" |
| Width |
39" to 74" |
| Height |
48" to 66" |
| Ram Penetration |
4" to 15" |
| Line Pressure |
2000 PSI |
| Cycle Time |
35 Seconds to 45 Seconds |
| Pump |
5 GPM to 40 GPM |
| Motor |
5 to 20 HP/3-Volt, 3P |
| Loading Height |
40" to 56" |
| Charge Opening |
20.5"x29.5" to 60"x78" |
| Max Ram Force |
19250 to 78250 LBS |
| Shipping Weight |
2850 LBS to 9895 LBS |
