ATLAS combines data collections from many sensor inputs within a vehicle. It is a powerful and unique TPMS telematics gateway. The core of the ATLAS system is tire pressure monitoring (TPMS), and the telematics device can record TPMS from powered and unpowered sources, such as a trailer.
Due to the tight integration of the hardware and ATLAS Insight, a user-friendly web application, it is simple to identify problems and take rapid corrective action.
Data collected from any equipment or vehicle could be stored in the hardware unit, which would act as a central repository. Several sensors can be installed to monitor various conditions, such as refrigeration and door openings.
In the event of a geo-fence breach, movement, or intrusion, the device can be tracked via GPS and will sound an alert. All information is transmitted through the Internet to the ATLAS Insight Platform.
ATLAS TPMS Telematics Family
Image Credit: Tough Tech Ltd
Image Credit: Tough Tech Ltd
ATLAS Griffin
- Designed with PressurePro Sensors specifically for use in the toughest conditions. Suitable for difficult tire requirements and OTR applications
- Using industrial valve sensors in situations with higher requirements
- Battery Backed—keeping an eye on when the trailer is not powered
- TPMS—tire monitoring under all conditions
- Tracking—always be aware of the location of the trailer
- Security—movement, geo-fence, door opening
- Engine Monitoring and Driver Behavior
- Axle Load Monitoring—monitoring load distribution
- Works with uncoupled trailers
- Elegant drop and hook
- User-friendly app
- One dashboard for journey health
Image Credit: Tough Tech Ltd
Image Credit: Tough Tech Ltd
Image Credit: Tough Tech Ltd
ATLAS Pegasus
- Designed to provide a practical, affordable response to commercial vehicle needs
- Using TPMS sensors on commercial valves
Additional Features
- Wheel Loss—notification with any wheel nuts loosening
- Hub Temperature—monitor for a rise in wheel/hub temp
Image Credit: Tough Tech Ltd

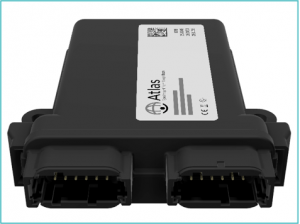

A TPMS Gateway built for global use on both 2G and LTE (4G) networks.
TPMS Telematics Gateway with Much More
The device features two CANbus connections to enable the recording of vehicle parameters or to make gathered data available to the vehicle, for example, integration with onboard screens.
The telematics gateway can function in a trailer or other unpowered vehicle with extra low-power and battery-backed modes. A web application or a mobile app might be utilized to construct use profiles. The device will be recharged when the power has been restored.
Using a separate serial interface (s), Axle Load Monitoring and other functionalities are provided.
Feature List
- 2× Serial Ports (RS-232 & TTL)
- Over-The-Air Updates managed
- ATLAS Insight Cloud Application for Fleet Management and Control
- Virtual Odometer—trip and idle time
- CANbus–Two (J1939) Interfaces
- TPMS—Tire Pressure Monitoring of all tires in real-time
- Internal Battery—measurement in an unpowered state
- GPS for vehicle tracking
- Security—Geo-Fence, Movement, Sensors
- Axle Load Monitoring—via external hardware
- Engine Management Diagnostics
- Driver Behavior
- BLE: Bluetooth SIG v5–mobile phone set-up and sensor I/P
- Accelerometer (Std) and Gyroscope (op)
- Multiple Inputs/Outputs (1-wire, digital)
- API available for back-office integration
- Mobile Phone App for local monitoring and set-up
- Wheel loss and hub and brake temperature Monitoring
- Elegant Drop and Hook and uncoupled operation
- Global Connectivity—2G/4G
Not Just TPMS – Telematics for Many Applications
ATLAS is a highly customizable fleet application with access to a variety of sensors and sensor inputs/outputs. It is ideally suited to a wide range of functions required from a vehicle and is easily customizable to keep track of additional specialty electronics.
Hence, OEM integration could serve as a foundation for exceptional customer support while keeping an eye on every component of a vehicle or machine. Using a branded ATLAS system, users could save months of work and money on research and development.
Much More Than TPMS
In addition to TPMS, ATLAS provides a variety of features including tracking, security, and axle load monitoring.
Image Credit: Tough Tech Ltd
