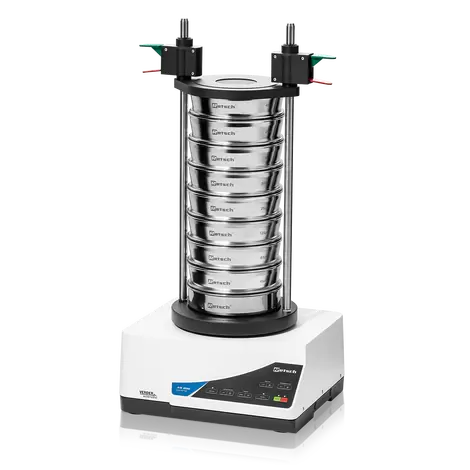

The microprocessor-managed measurement and control system of the AS 200 control vibratory sieve shaker maintains an unvarying vibration height, enabling complete reproducibility of outcomes even across separate AS 200 control shakers.
A specific feature distinguishes this RETSCH instrument from alternative models. Rather than adjusting the vibration height, users can configure the sieve acceleration, which remains unaffected by the power frequency. Combined with calibration capabilities, this feature guarantees uniform and reproducible sieving outcomes globally. Consequently, every criterion for test equipment monitoring relating to DIN EN ISO 9001 is satisfied.
Sieve Shaker AS 200 control #RETSCH #sieveshaker #laboratoryinstruments
Product Video. Video Credit: Retsch GmbH
Accuracy and Efficiency
- Sieving with 3D effect
- Accommodates sieves reaching up to (Ø) 203 mm
- Appropriate for both wet and dry sieving
- Measuring range 20 μm to 25 mm
- Digital configuration and monitoring of sieving parameters
- Storage capacity for 99 Standard Operating Procedures (SOPs)
- Test materials monitoring according to DIN EN ISO 9001
- Sieve acceleration unaffected by power frequency
- Patented electromagnetic drive (EP 0642844)
Image Credit: Retsch GmbH
Safe and Simple Operation
Handling the AS 200 control is straightforward and user-friendly.

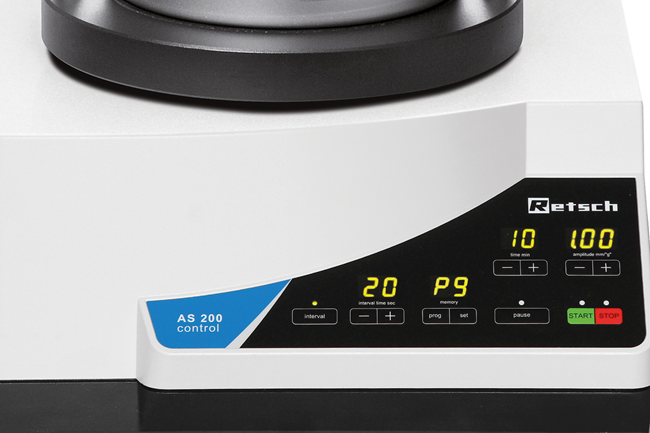

Every sieving parameter – vibration height, duration, and interval – is digitally configured, displayed, and tracked.
Up to 99 parameter profiles (SOPs) can be saved for regular testing. Using the built-in interface, the device connects to a PC to be managed through the EasySieve® evaluation software. This application allows operators to execute the complete sieving workflow along with its resulting documentation effortlessly, precisely, and in compliance with established standards.
Image Credit: Retsch GmbH

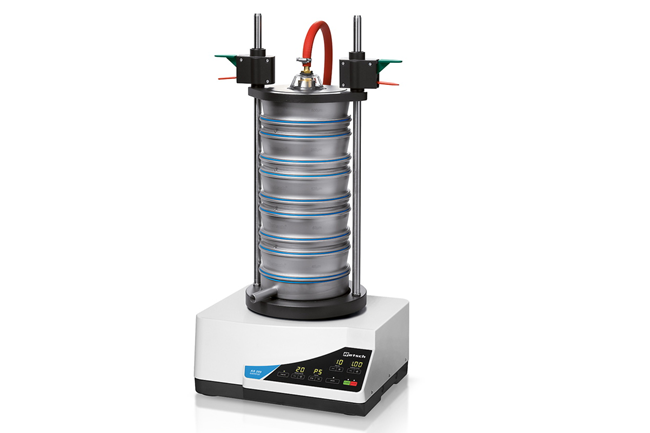

Wet Sieving with Vibratory Sieve Shakers
Wet sieving is the ideal option in many situations, such as when the material to be tested is a suspension or when a very fine sample (less than 45 μm) that tends to agglomerate needs to be sieved.
Wet sieving is possible with any of RETSCH's vibrating sieve shakers. Special accessories include collecting pans with an outlet and clamping lids with a spray nozzle.
Air cushions can expand without allowing liquid or sample material to escape by placing RETSCH's venting rings between the sieves.
Image Credit: Retsch GmbH
Accessories and Options
The control series sieve shakers support installation of diverse accessories to accommodate numerous application needs.

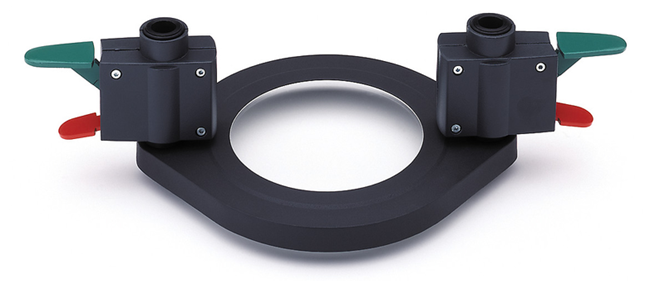

Clamping Units
Utilizing RETSCH clamping devices allows sieves to be secured onto the sieve shaker safely, rapidly, and conveniently. The "comfort" clamping devices offer enhanced user-friendliness and time efficiency.
Clamping units. Image Credit: Retsch GmbH

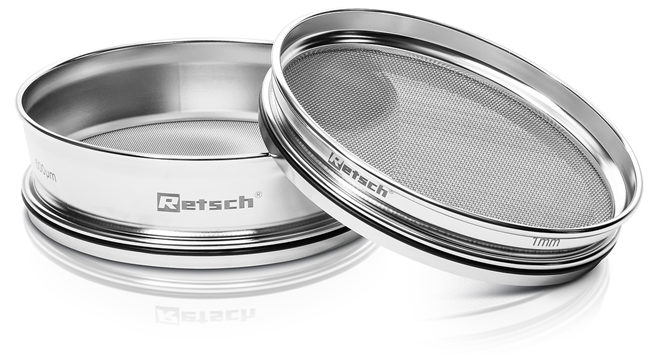

Accessories for Test Sieves
Collecting pans, intermediate pans, intermediate rings, and sieve lids.
Test sieves. Image Credit: Retsch GmbH
Accessories for Wet Sieving
Clamping lid with nozzle, collecting pans with outlet, venting rings.
Sieving Aids
Chain rings, brushes, cubes, balls (e.g., to minimize agglomerations during sieving of particles < 100 μm and maintain open mesh apertures).
IQ/OQ Documents
RETSCH delivers IQ/OQ documentation alongside "control" sieve shakers to assist with IQ/OQ certification for the clients.

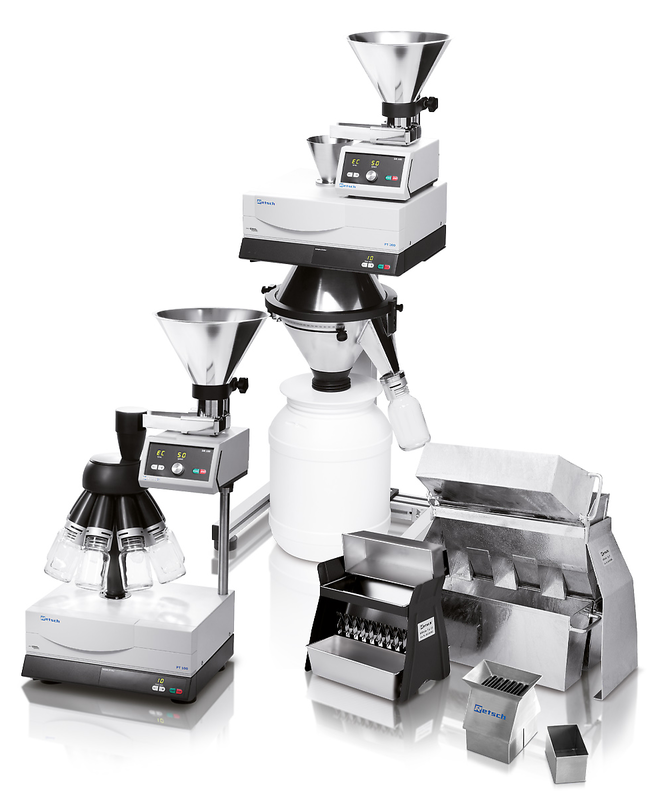

Sample Dividers
Valid outcomes require the sample to accurately reflect the source material. Sample dividers generate representative subsamples, thereby guaranteeing analytical reproducibility.
Sample dividers. Image Credit: Retsch GmbH

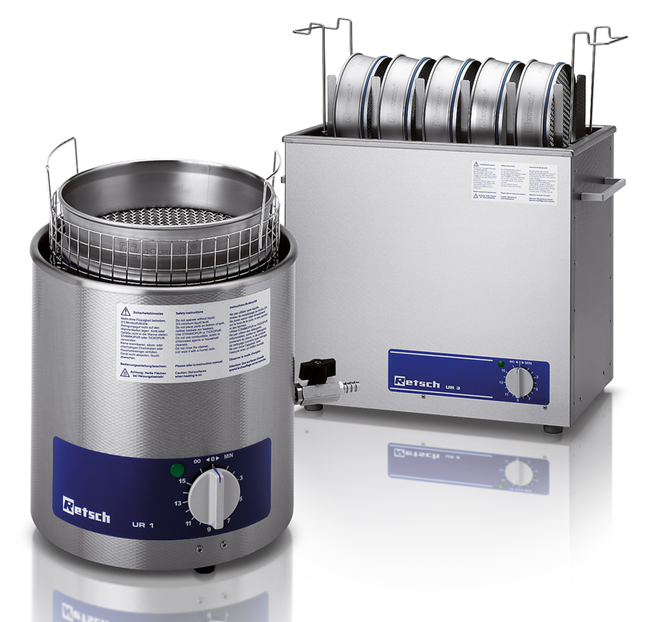

Ultrasonic Baths and Dryers
Appropriate for deep cleaning of test sieves as well as rapid, gentle drying of both samples and sieves.
Ultrasonic baths and dryers. Image Credit: Retsch GmbH
