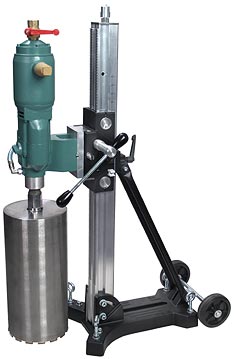

Pneumatic Core Drilling Machine from CS Unitec Inc.

The 2 1328 0050 Core Drill combines a powerful 3.8 HP motor with a rugged 3-speed gearbox to drill holes from 1/2” to 12” diameter. Ideal for heavy-duty drilling in concrete, reinforced concrete, asphalt, natural stone and refractory. No other drill in its class is so light and powerful.

  • High-torque 3-speed gearbox for optimal drilling speeds: 300-700-1350 RPM
  • 1” to 12” bit capacity
  • Heat-treated gears for long life
  • Mechanical Slip Clutch protects in case of jamming
  • 43” tall drill stand with Quick Lock Motor Mount,
  • positive locking knob and wheels
  • Hand-crank can be mounted on either side of the drill stand. The stand angle is adjustable up to 45°
  • Built-in Water Swivel
  • 1-1/4” x 7 UNC Spindle
  • 5/8” x 11 UNC Adapter (optional)
