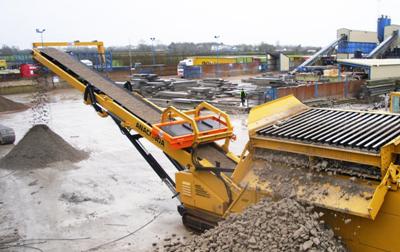

FTR Feeder Conveyor from Anaconda Equipment

The FTR 150 feeder is the latest product in a range designed especially for the material handling industry. The FTR 150 is rugged and highly cost effective. The FTR 150 has been designed for aggregates, sand & gravel, coal and other related industries. The unit has a variable speed belt feeder and a 50 ft (15m) long stockpiling conveyor which is ideal for truck/wagon/barge loading or to act as a surge feeder in an existing or new quarry plant. The FTR 150, like all Anaconda products will be folded and shipped worldwide in a standard 40 ft container.

Features and Benefits

The FTR Feeder Conveyor has the following features and benefits:

  • Hopper capacity of 6m³, with an option to increase this to 9m³
  • Variable speed 4 ply 1050mm wide feeder belt
  • JCB 444 dieselmax water cooled engine (84hp – 63kw)
  • Hydraulic jacking legs for ease of set up/movement
  • Hydraulic folding head section as a standard
  • Easy access to engine compartment
  • Folds, tracks & transports without any breakdown/set-up
  • Set up time 20 minutes

Alternatives

The alternatives available are:

  • Feedboot extensions
  • Remote control tipping grid
  • Twin deck vibrating grid
  • Deutz TD2011 air cooled power unit – 74hp (58kw)
  • Radio remote control
  • Twin drive motors on feeder and/or main conveyor
