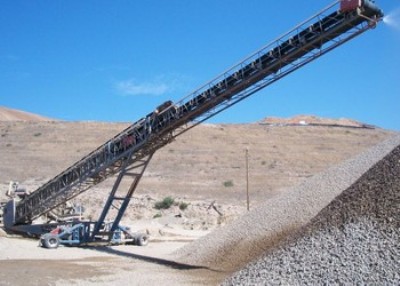

Telescopic Radial Stacker (Thor) from Rock Systems

The Telescopic Stacker (Thor), model T1 50-8 has the following product features:

  • It has a 36" wide x 150' long telescopic portable radial stacker capable of 800 tons per hour production
  • The Thor is equipped with telescopes from 88'-6" to 150' complete with 40 h.p. electric motor drive on the outer conveyor
  • It has twin 10 h.p. electric motor drives on the inner conveyor, CEMA "C" idlers; 3 ply belting, winch ratchet system, load equalizing systems, heavy duty undercarriage with swing arm axle assembly
  • The Thor has a 7.5 h.p. electric/hydraulic power package for undercarriage raise/lower
  • 1.5 h.p. electric motor to operate the telescopic extend/retract
  • Twin 1.5 h.p. parallel helical gear motor drives for radial travel with quick release system
  • The stacker is equipped with a Nema 4 electrical control panel with Cutler Hammer touch screen and Allen Bradley SLC 500 processor to operate the conveyor in fully automatic mode or manual mode
  • Ultrasonic sensors, inductive proximity sensors, rock box receiving hopper, 5th wheel tow hitch, safety guards, field tow hitch, landing legs.
