Geothermal Drilling / Water Well Drilling Simco 2800 HS (HT) from Simco

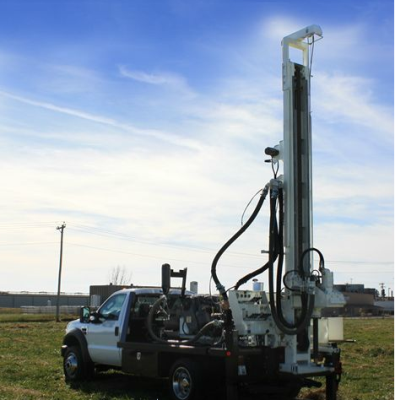

The SIMCO 2800 HS (HT) is a hydraulic top head drive drill rig. It is rugged, compact, and easy to maintain. It is suitable for water well drilling and geothermal drilling. It provides excellent support and service, and also offers best warranty in the geothermal drilling industry and the waterwell drilling.

The SIMCO 2800 HS includes air rotatory and wet rotatory.

Specifications

The specifications of the SIMCO 2800 HS are:

  • Push Down - 12,000 lbs
  • Drillhead Torque - 4,000 ft. lbs. 2- Speed
  • Pullback - 12,000 lbs
  • Drillhead Travel- Net Stroke - 11’
  • Auxiliary Winch - 2550 lbs
  • Main Winch - 4500 lbs
  • Drillhead RPM - 0-200 RPM
