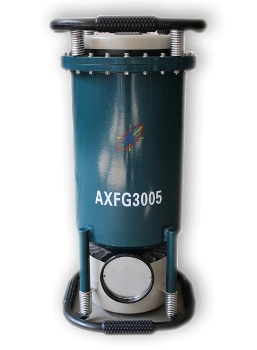

The AXFG series detector available from Angstrom Advanced is fitted with a rippled ceramic x-ray tube. This rippled ceramic x-ray tube provides a number of benefits, such as higher stability, smaller size, higher voltage and power, and longer service life.
With features like compact size, lightweight design, excellent shockproof ability, and extended service life, the AXFG X-ray flaw detector is a suitable choice for most applications.
Angstrom Advanced also offers the AXFQ series portable directional X-ray flaw detector (with glass x-ray tube) and the AXFH series panoramic X-ray flaw detector (with glass x-ray tube).
Specifications
The specifications of the portable X-ray flaw detector are provided in the table below:
|
Type |
Output Voltage (kv) |
Input Power (kw) |
Focal Spot Size (mm2) |
Divergent Angle |
Max. Penetrate Depth in Steel (mm) |
Generator Weight (kg) |
Generator Size (mm3) |
|
AXFG-1605 |
60~160 |
1.5 |
0.8 × 0.8 |
40±5° |
19 |
14.5 |
225 × 225 × 550 |
|
AXFG-2005 |
100~200 |
2.0 |
2.0 × 2.0 |
40 ± 5° |
30 |
18 |
285 × 285 × 615 |
|
AXFG-2505 |
150~250 |
2.5 |
2.0 × 2.0 |
40 ± 5° |
40 |
30.5 |
320 × 320 × 640 |
|
AXFG-3005 |
170~300 |
3.0 |
2.5 × 2.5 |
40 ± 5° |
50 |
36.5 |
345 × 345 × 670 |
