Portable XRF is an Effective Tool for Monitoring Gold in Activated Carbon

At several mines worldwide, activated carbon is usually employed as part of the gold recovery process. It is used not just in carbon in pulp (CIP) but also in carbon in leach (CIL) techniques. The CIP and CIL methods extract gold (Au) from pulp or solutions obtained from the cyanidation process. The World Gold Council reports that the cyanidation process extracts more gold when compared to any other process.

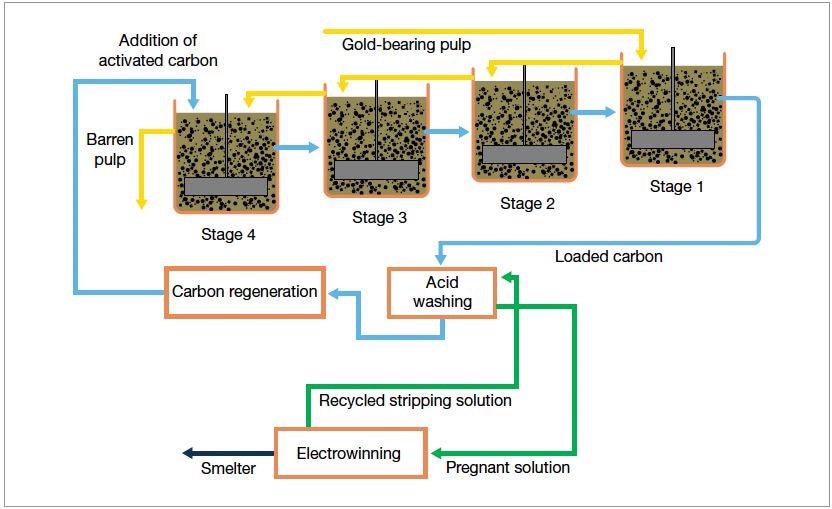

Gold cyanidation, which is a hydrometallurgical process, involves the recovery of gold from ore by turning the gold into a water-soluble coordination complex. The gold from the resulting solution is absorbed using activated carbon. The carbon is subsequently removed from the gold prior to passing it through an electrowinning circuit and smelting it to form gold bars.

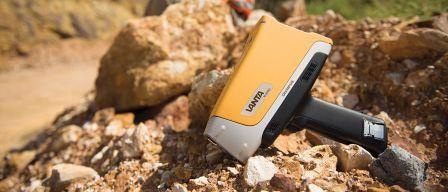

Tracking the content of gold and other elements in the activated carbon allows process optimization and maximum recovery of gold. The Vanta™ portable XRF analyzer is employed instead of conventional laboratory techniques within the mine-site laboratory because of its user-friendliness, speed, and considerably enhanced accuracy and precision.

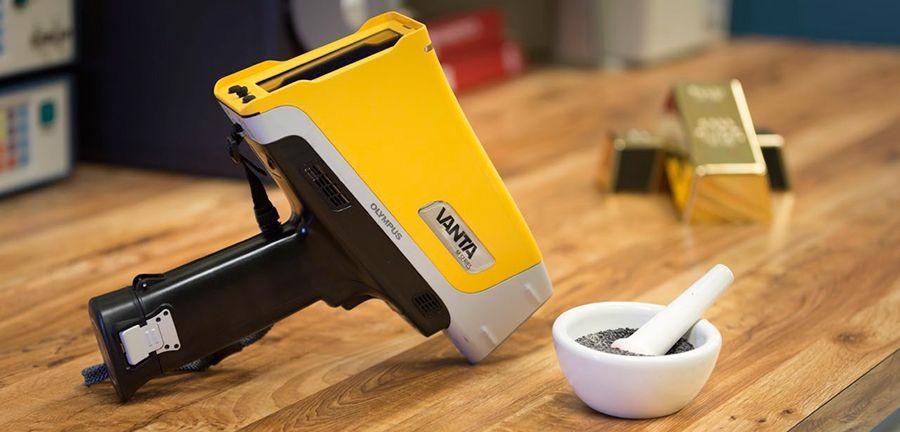

The Vanta analyzer offers precise chemistry for over 30 elements in liquids and solids, from trace level to percent level, from samples across the whole minerals cycle. The Vanta analyzer can be employed to quantify the gold loading of activated carbon from each of the tanks used as part of the process either in unprepared coarse form or after going through a fine grind.

Gold concentrations within activated carbon encompass a broad range, usually measuring as high as 10,000 grams/ton (g/t), or 1%. The Vanta analyzer is used to monitor silver (Ag) calcium (Ca), and copper (Cu) within carbon from a variety of mine sites.

It is valuable to track calcium within activated carbon. Lime is used as part of the cyanidation process, and continuous exposure to lime dosages clogs up the pore spaces in activated carbon, thus decreasing the potential of carbon to recover gold. When calcium is detected in large amounts, it indicates that new carbon is required or that the existing carbon must be regenerated. Calcium can also be analyzed on a Vanta analyzer simultaneously while measuring copper, silver, and gold.


Portable XRF vs Lab Results

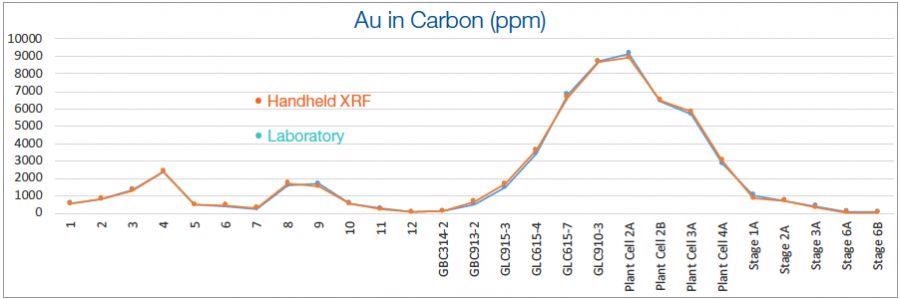

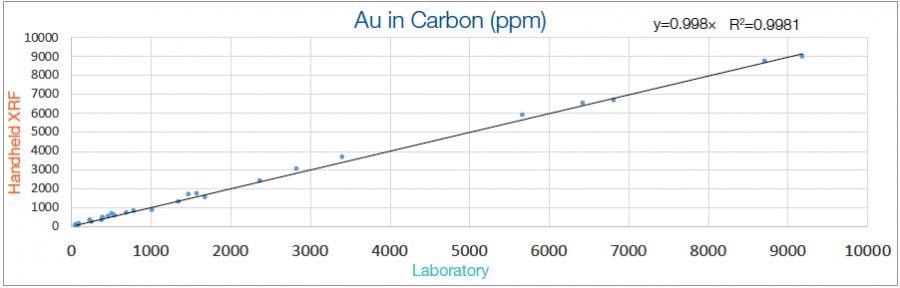

The graphs below illustrate a comparison of Vanta analyzer with laboratory results for Au in activated carbon from certified reference materials and from different mine sites. The results show outstanding correlation and accuracy between pXRF and lab results. In addition, the results reveal the potential of pXRF to monitor trends in Au adsorption within carbon at any mine site and offer support for laboratory operations and mineral processing decisions.

Portable XRF vs Lab Results

Portable XRF vs Lab Results

Sample Au ppm (Laboratory) Au ppm (Evident pXRF)
1 544 536
2 784 814
3 1350 1296
4 2370 2387
5 468 477
6 395 443
7 239 299
8 1580 1713
9 1688 1532
10 547 527
11 260 205
12 64 60
GBC314-2 96 119
GBC913-2 508 654
GLC915-3 1472 1673
GLC615-4 3405 3622
GLC615-7 6815 6652
GLC910-3 8713 8698
Plant Cell 2A 9178 8933
Plant Cell 2B 6428 6497
Plant Cell 3A 5666 5845
Plant Cell 4A 2828 3027
Stage 1A 1015 837
Stage 2A 700 700
Stage 3A 390 323
Stage 6A 86 34
Stage 6B 48 26.5


Portable XRF has been established to be an effective tool to supervise loading trends for gold in activated carbon. The results of the Vanta analyzer are almost similar to the laboratory results. With the real-time monitoring enabled by pXRF, optimal carbon efficiency can be maintained and the delays and expenses associated with lab analysis can be decreased.
