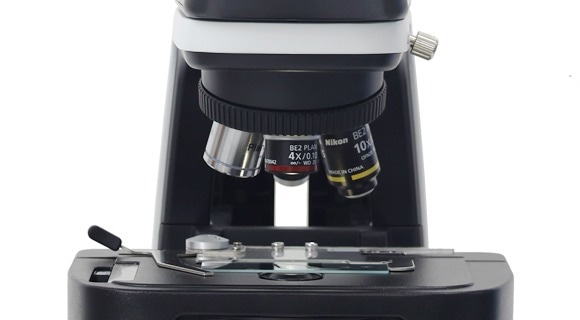

BeVision S1 - Static Image Analyzer

The BeVision S1 integrates light microscopy with image analysis to deliver intuitive and precise size and shape distributions for powders or suspensions. With an objective magnification of up to 100x, the device can effectively analyze and record particles as small as 1 μm, making it a powerful tool for detailed particle analysis.

Features and Benefits

  • A wide measurement range of 1 to 3000 µm
  • A total of 24 different particle size and shape parameters
  • A range of optional models for different applications
  • Suitability for both dry and wet measurements
  • All results are compliant with ISO 9276-6
  • A cost-effective particle analysis solution
  • Powerful software to streamline workflows
  • Customizable reports to accommodate a range of evaluation options


Source: Bettersize Instruments Ltd.

BeVision S1
Measuring principle Static image analysis method
Parameters Particle size, shape, and number
Measurement performance
Measuring range 1 – 3,000 μm
Typical measurement time 3 to 5 min *
Number of size/shape classes 100 (user adjustable)
Special functions SOP settings, analysis of saved images
Main device
Optical lens 4×, 10×, 40×, 100× (with 40 × digital magnification)
Camera 5Mpix CMOS camera
Light source White light LED, Halogen lamp (optional)
System parameters
Dimensions (L × W × H) 20.0 × 42.0 × 55.0 cm
Weight 8.0 kg
Supply voltage 100 / 240 V, 50 / 60 Hz
Conformity ISO 13321, ISO 9276
Reports Customizable reporting
BT - 910 powder disperser
Dimensions (L × W × H) 23.5 × 16.5 × 26.6 cm
Weight 4.3 kg
Supply voltage 100 / 240 V, 50 / 60 Hz
Dispersion air pressure ≤ - 60 kPa

* Sample and sample preparation dependent
