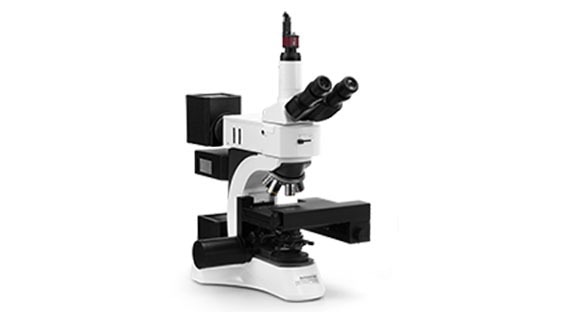

BeVision M1 - Automated Static Image Analyzer

The BeVision M1 is an automated image scanning system designed specifically for the cleanliness analysis of particulates on filters.

The system is fitted with a powerful metallurgical microscope, auto-focus function, programmable motorized stage, and high-resolution CMOS.

The BeVision M1 allows its users to capture and recognize each individual particle, automatically stitching captured images together to form a large overview image.

Features and Benefits

  • A wide measurement range of 1 - 10,000 µm is achievable.
  • Results are fully compliant with ISO 9276-6.
  • Measurements are highly reproducible.
  • Images are captured via a high-speed CCD camera.
  • Workflows are streamlined via powerful software.
  • An automatic sample stage ensures high position accuracy.
  • A total of 24 available particle size and shape parameters are available.
  • Users can benefit from an invaluable tool in surface cleanliness measurements.


Source: Bettersize Instruments Ltd.

BeVision M1
Measuring principle Static image analysis method, automatically scanning
Parameters Particle size, shape, and number
Measurement performance
Measuring range 1 – 10,000 μm
Typical measurement time 3 to 5 min *
Number of size/shape classes 100 (user adjustable)
Special functions SOP settings, analysis of saved images
Main device
Optical lens 4 ×, 5 ×, 10 ×, 20 × (with 40 × digital magnification)
Camera Up to 120FPS
Light source Halogen lamp, Köhler illumination
Stage scanning range 55 × 55 mm
System parameters
Dimensions (L × W × H) 35.0 × 65.0 × 67.0 cm
Weight 18.7 kg
Supply voltage 100 / 240 V, 50 / 60 Hz
Conformity ISO 13321, ISO 9276, ISO 16232, ISO 4406
Reports Customizable reporting
BT - 910 dry powder dispersion module
Dimensions (L × W × H) 23.5 × 16.5 × 26.6 cm
Weight 4.3 kg
Supply voltage 100 / 240 V, 50 / 60 Hz
Dispersion air pressure ≤ - 60 kPa

* Sample and sample preparation dependent

How to Install and Operate BeVision M1

Video Credit: Bettersize Instruments Ltd.
