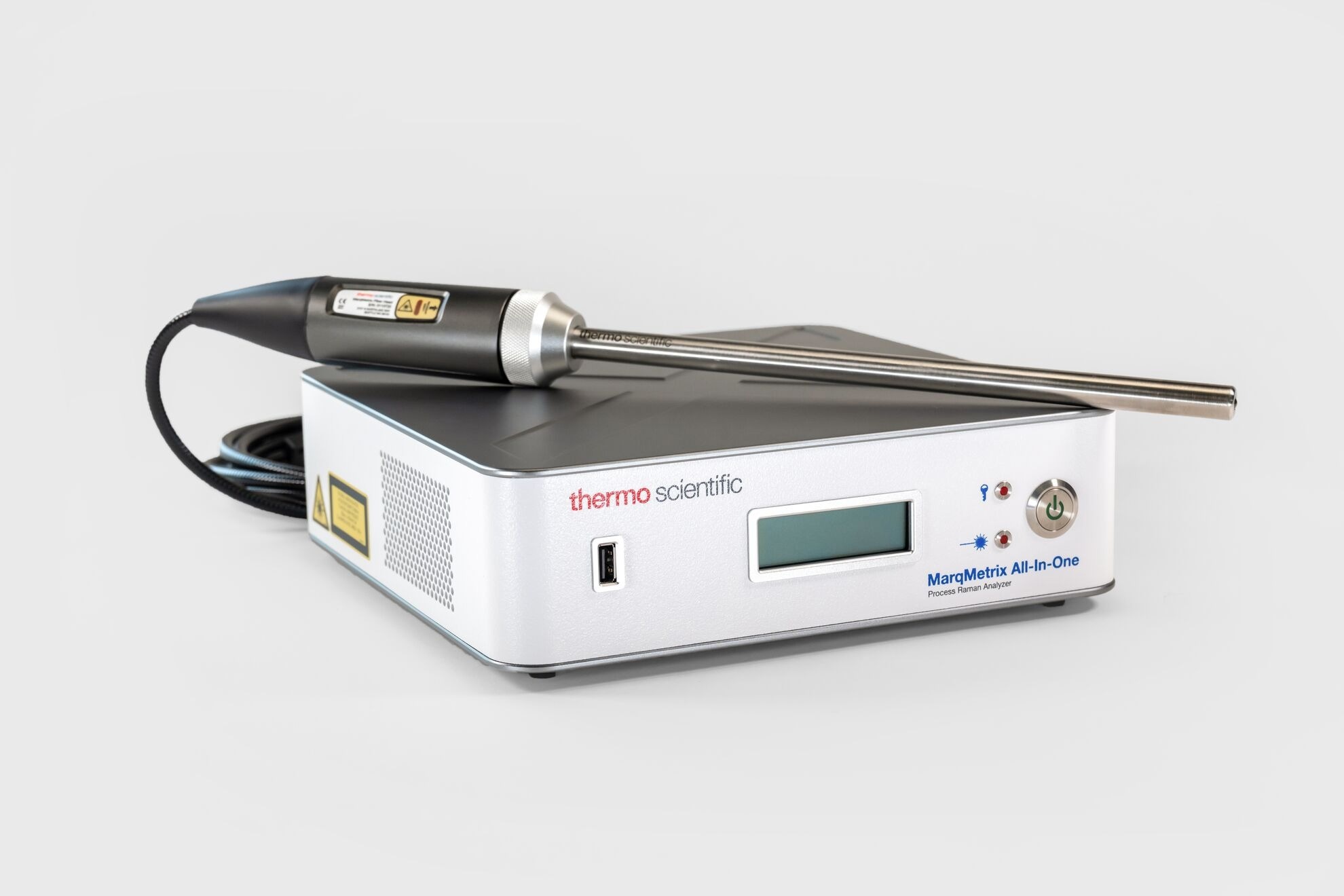

The MarqMetrix All-In-One Process Raman Analyzer enables real-time, nondestructive, in-line material analysis without the need for sample preparation—even in hazardous locations. The scalable and compact Thermo Scientific MarqMetrix All-In-One Process Raman Solution consists of an analyzer and probes to help monitor, control, and optimize your processes across the energy sector.
Product Overview
Enabling Real-Time, Accurate Results for Process Monitoring
- Direct analysis without sample preparation, providing real-time Raman spectral results
- Certified for use in hazardous locations: ATEX Zone 0, IECEx and Class 1 Division 1
- A compact footprint for easy and flexible deployment
- Simple to set up and operate, even for non-Raman spectroscopists
- Factory-calibrated for reliable hardware stability and portability
- Non-destructive approach preserves valuable samples
- Non-invasive design reduces sample contamination
- Measure properties like RON, MON, API gravity, and freeze point without delays or sample prep
- Accurate analysis of natural gas and NGL streams. It measures key components—like methane, ethane, and propane—without carrier gases, consumables, or frequent maintenance
- Battery applications: Process Raman spectroscopy helps optimize performance, monitor degradation, and support the development of more efficient, longer-lasting energy storage technologies
The MarqMetrix All-In-One Process Raman Analyzer makes taking precise and accurate measurements easy. With intuitive one-button hardware and user-friendly software, users can capture highly accurate Raman data with confidence.
The MarqMetrix All-In-One Process Raman Analyzer can be seamlessly integrated into existing processes without expensive technical expertise.
Application Versatility
Specifications
Source: Thermo Fisher Scientific – Production Process & Analytics
| . |
. |
| Certifications/Compliance |
Laser Certification: Class 3B laser device
Reported to the FDA |
| Certified for use in hazardous locations |
ATEX Zone 0, IECEx and Class 1 Division 1 |
| Dark Noise |
≤16.5 counts at 10 second integration |
| Depth (Metric) |
25 cm |
| Detector |
Thermally stabilized CCD (2 stage TEC) |
| Electrical Requirements |
Hertz: 50/60 Hz |
| Fiber Conditions |
FC/PC (Both excitation and collection) |
| Height (Metric) |
7.7 cm |
| Includes |
Wireless mouse, HDMI cable, monitor |
| Laser Power |
Laser Excitation Wavelength: 785 nm, Excitation power: 10 to 450 mW |
| Operating Temperature Range |
15 °C to 33 °C |
| Ports |
1RJ-45 Ethernet port 3 USB 3.0 |
| Resolution |
Spectral Resolution: 6.5 cm-1 average across spectral range |
| Safety Features |
1 keyed Laser interlock switch, Electronic laser trigger |
| Software Details |
MarqMetrix Raman suite Controller: Integrated PC (Windows 10 OS) |
| Spectral Range |
100 to 3250 cm-1 |
| Width (Metric) |
25 cm |
| Unit Size |
Each |
Analyzers and Probes for Multiple Applications
Users can choose the analzyer and probe that is best suited for their specific application:
- Thermo Scientific™ MarqMetrix™ All-In-One Process Raman Analyzer
- Thermo Scientific™ MarqMetrix™ All-In-One X Process Raman Analyzer (for Hazardous Locations)
- Thermo Scientific™ MarqMetrix™ Custom BallProbe™ Sampling Optic
- Thermo Scientific™ MarqMetrix™ Performance BallProbe™ Sampling Optic
- Thermo Scientific™ MarqMetrix™ Process BallProbe™ Sampling Optic
- Thermo Scientific™ MarqMetrix™ BallProbe™ Sampling Optic
- Thermo Scientific™ MarqMetrix™ Fiber BallProbe Sampling Optic
- Thermo Scientific™ MarqMetrix™ FlowCell Sampling Optic
- Thermo Scientific™ MarqMetrix™ Proximal BallProbe Sampling Optic
- Thermo Scientific™ MarqMetrix™ Single Use Bioreactor BallProbe Sampling Optic
- Thermo Scientific™ MarqMetrix™ High-Throughput Probe Sampling Optic
- Thermo Scientific™ MarqMetrix™ Threaded BallProbe Sampling Optic
