The SpectrOil 100 Rotating Disc Electrode Optical Emission Spectrometer (RDE-OES) represents the eighth generation of the leading RDE elemental spectrometer in the market. It is a tried-and-tested method for accurately figuring out the elemental composition of lubricating oil, coolant, light or heavy fuels, grease, and process water.
It is extensively used in commercial oil laboratories and on-site or trailer labs. It is also a crucial part of the MiniLab Series of on-site oil analysis products from Spectro, including the highly popular MiniLab 153.

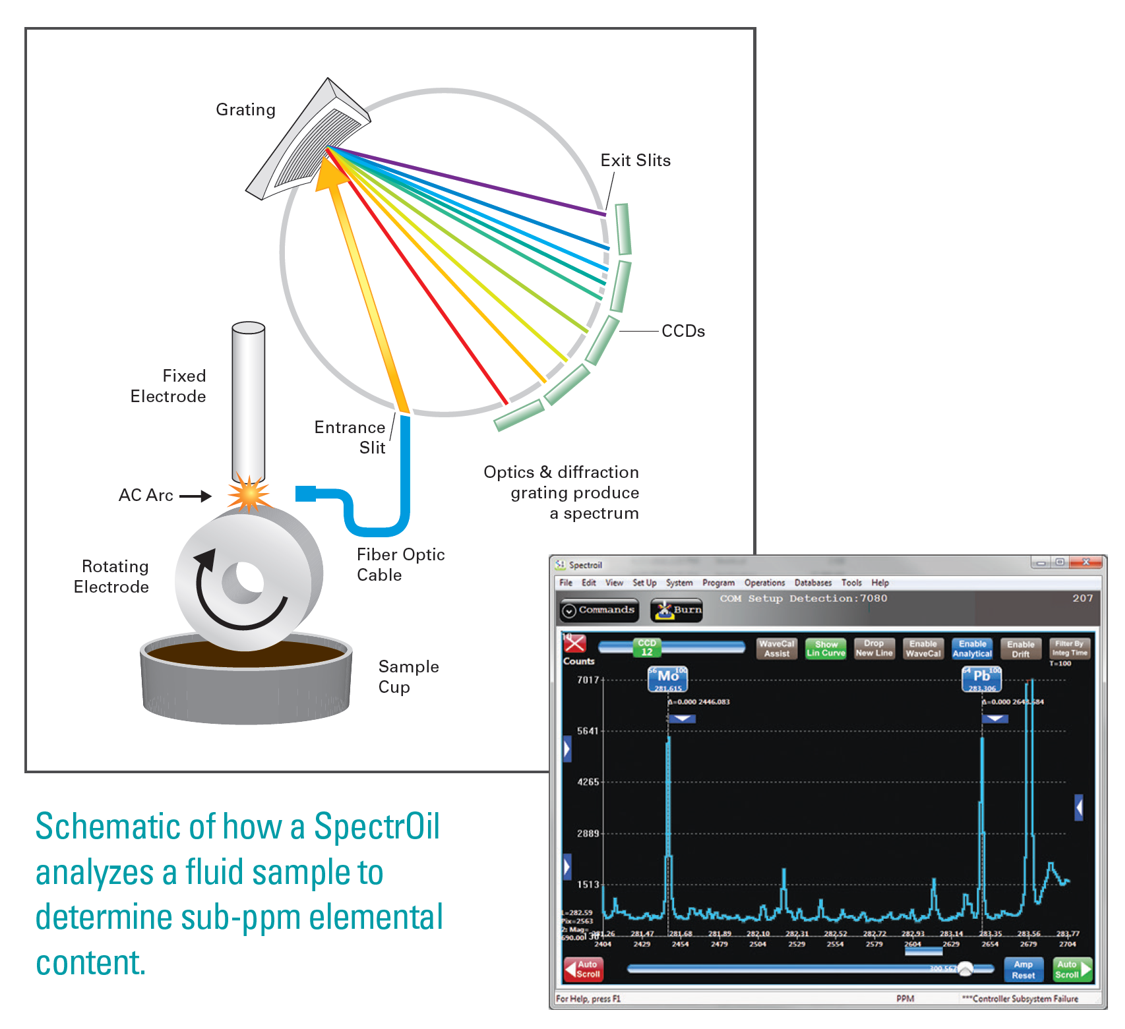

Principle of Operation
Image Credit: Spectro Scientific
Key Features
- No solvent, no dilution of the sample.
- Use only 2 mm of oil.
- 30-second test duration to measure up to 31 components at once
- Sub PPM lower limit of detection (LOD) for most elements.
- Easy to use with a push button for both on-site and laboratory applications
- Complies with ASTM-D6728 (fuel) and ASTM-D6595 (oil).

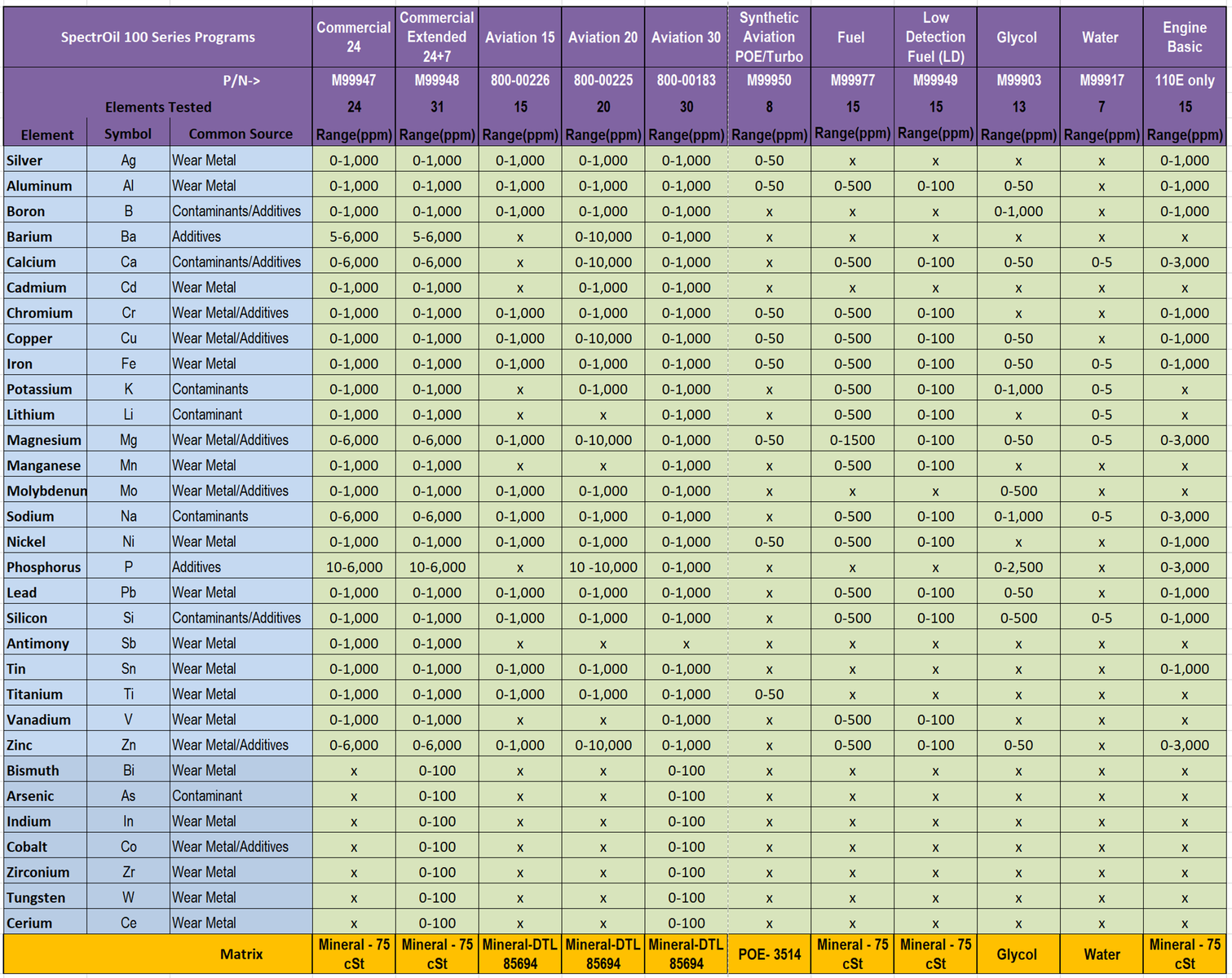

SpectrOil 100 Series Programs and Calibration Ranges in ppm
Source: Spectro Scientific
Product Models and Default Calibration Program
Source: Spectro Scientific
| Model |
Calibration Included |
Optional Calibration |
| 120C |
M99947-Commercial 24 |
Any above |
| 120F |
M99977-Fuel |
Any above |
| 110E |
110E |
None |

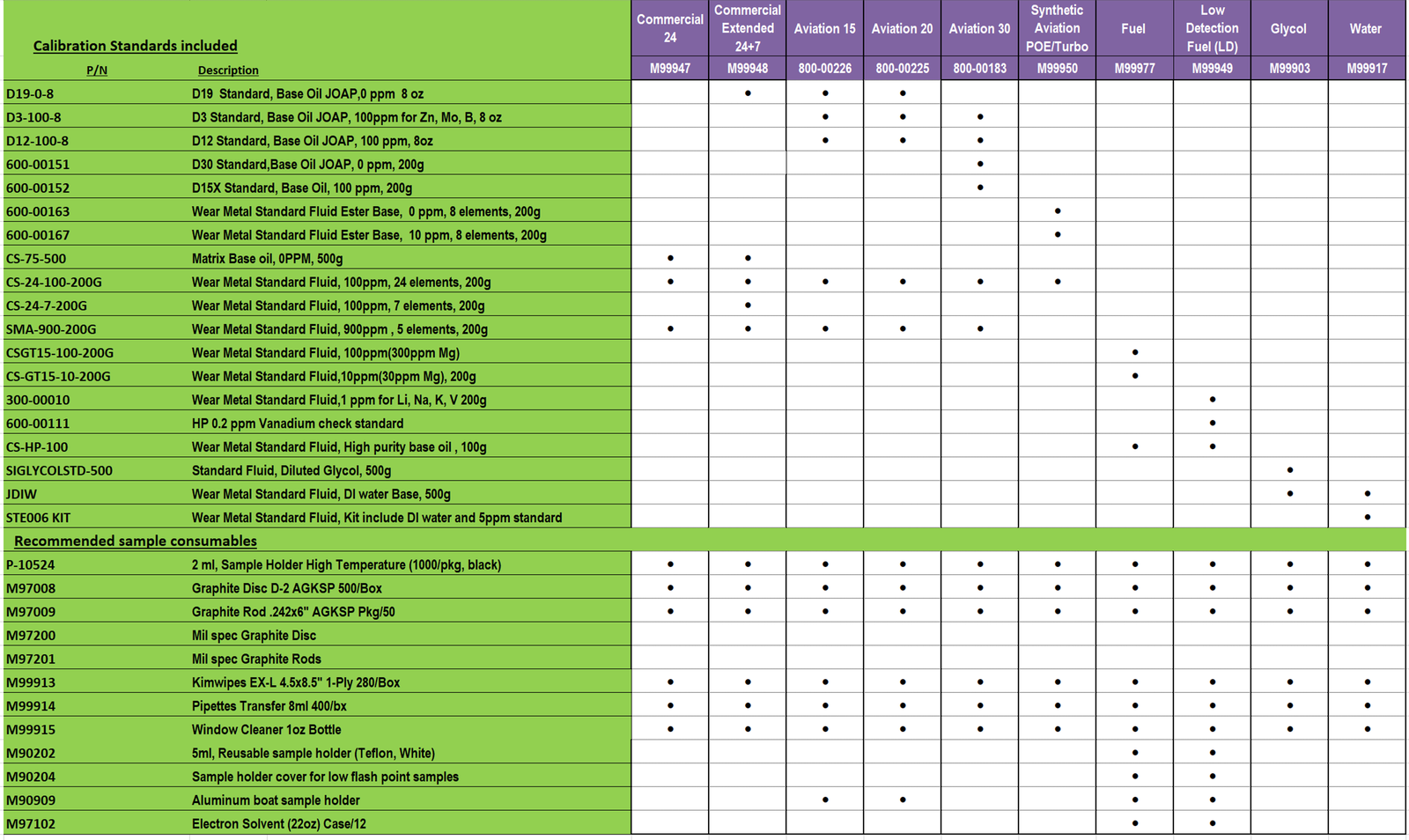

Consumables used by Calibration Programs
Various consumables are used for calibration processes to guarantee precise and consistent test results. Only consumables with Spectro Scientific certification can fulfill performance requirements.
Source: Spectro Scientific
Video
See it in action: Spectroil 100 Elemental Oil Analysis
How To Use: SpectrOil 100 Series (formerly Spectroil Q100). Video Credit: Spectro Scientific
Dimensions
- 66 × 40 × 74 cm
- 26 × 16 × 29 inches
- 75 kg (165 lbs) in weight
