A real-time, respirable dust monitor intended for immediate use alongside a personal dust monitor specifically designed for mining applications in the U.S.

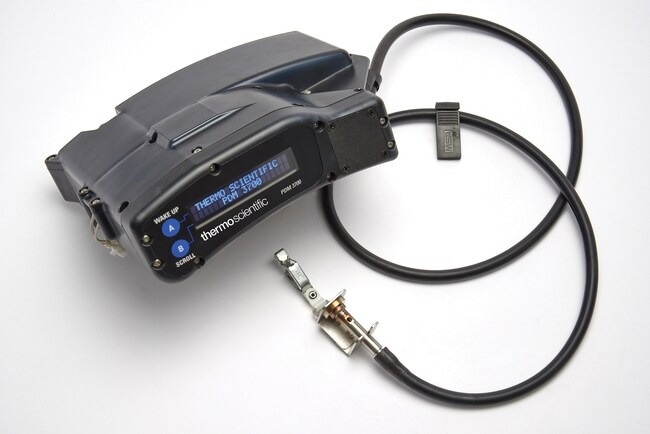

PDM3700 Personal Dust Monitor. Image Credit: Thermo Scientific - Chemical Analysis Production Process and Analytics
Product Overview
Monitor coal dust exposure in real time with a personal dust monitor built for U.S. mining environments. The Thermo Scientific™ PDM3700 Personal Dust Monitor includes waterproof battery protection, PC-based software for data download and reporting, and an integrated charger with a download station for PC connectivity.
This real-time, respirable personal dust monitor is specifically designed to comply with the latest MSHA Dust Rule requirements.
- PC-based software for data downloading, status flag review, and MSHA reporting
- Integral charger with a download station for PC interface
- Ergonomic and lightweight design
- Industry-standard sampling inlet
- Waterproof battery protection
Reduce Exposure to Dust
The PDM3700 monitor is engineered to provide timely, high-quality personal dust exposure data. It tracks shift-average respirable coal dust exposure as it nears regulatory limits, helping protect miners' health. The monitor equips both workers and site management with essential data for dust monitoring, helping reduce exposure. It serves as the first line of defense against long-term health risks.
Real-Time Measurement
The PDM3700 provides three real-time measurements: current mass concentration, cumulative mass concentration, and percent of limit. It also allows two user-initiated secondary measurements without interrupting primary sampling.
This battery-operated monitor continuously samples air from the breathing zone, filters out non-respirable particles, and measures the mass of collected dust on an exchangeable filter.
Lower Per-Sample Cost
Exposure results are automatically calculated, removing the need for filter transport and manual handling associated with traditional gravimetric methods. This automation significantly reduces per-sample costs and enables continuous data availability.
Designed for the Mine Environment

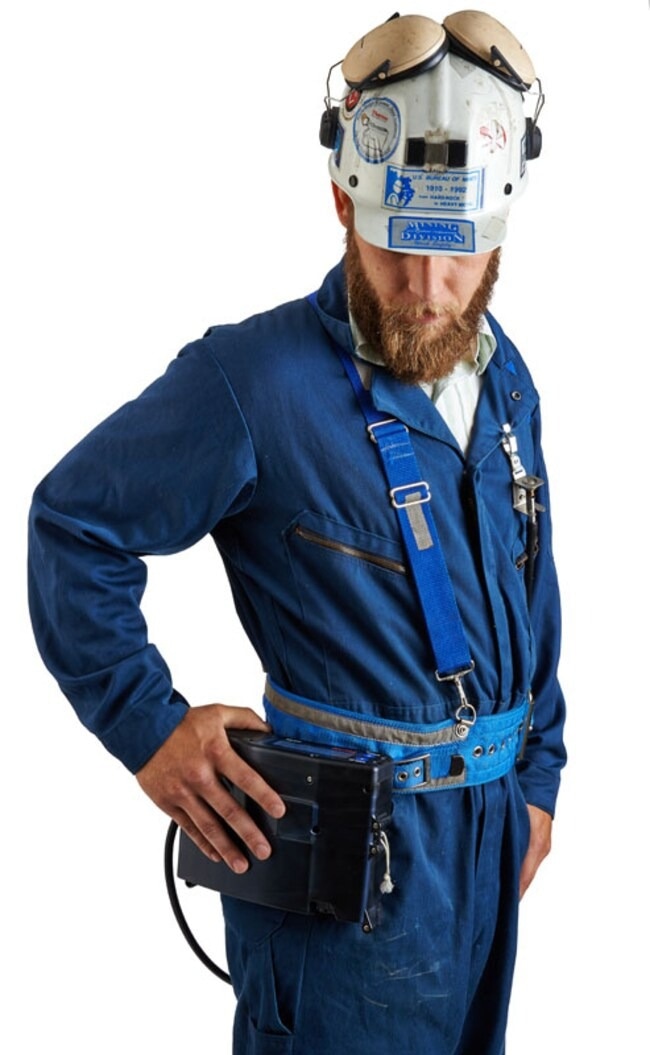

Proven underground capable, through the success of the PDM3600 monitor, the PDM3700 personal dust monitor also offers accurate, continuous, personal respirable dust exposure information. Capable of satisfying the typical mine environment, the durable, belt-mounted case is made of static-dissipating housing.
Specifications
Source: Thermo Scientific - Chemical Analysis Production Process and Analytics
| |
| Accuracy |
25 % of the reference method (for concentrations greater than 0.2 mg/m3)
Minimum dust loading: 0.1 mg (to achieve specification)
Maximum dust loading: 4.0 mg (to achieve specification)
Accuracy only valid within operating temperature of -4° to 104 °F (-20° to +40 °C) and with a relative humidity from 0 % to 100 % |
Certifications/
Compliance |
- NIOSH approval number TC-74CPDM-01
- Certified intrinsically safe by the Mine Safety Health Administration (MSHA) (19-A040002-0)
- EN61326-1:2005 - Pending
- FCC Part 15 subpart B - Pending
- UN T1-T8 (shipment of lithium-ion batteries)
- The PDM3700 Charger complies with the ANSI/UL 1012 standard for power units other than Class 2, 7th Edition (4/29/05) - Pending
|
| Concentration Display Averaging Time |
30 minutes |
Concentration Measurement
Range |
0 - 200 mg/m3
3 primary displays:
- 30 minute average
- cumulative concentration average to the point of measurement
- shift concentration average
|
| Data Points |
Minimum of 30 shifts |
| Depth (English) |
3.25 in. |
| Depth (Metric) |
8.26 cm |
| Description |
PDM3700 Personal Dust Monitor |
| Electrical Requirements |
1 internal lithium ion battery assembly |
| Height (English) |
6.75 in. |
| Height (Metric) |
17.15 cm |
| Particle Size Range |
less than 4.5 um |
| Resolution |
0.01 mg/m3
Mass concentration sensitivity: 0.05 mg/m3 (1 sigma) 30 second averaging |
| Weight (English) |
4.41 lb. |
| Weight (Metric) |
2.0 kg |
| Width (English) |
9.57 in. Sampling tube: 36.0 in. ± 0.25 in. |
| Width (Metric) |
24.31 cm
Sampling tube: 91.44 cm ± 0.635 cm |
| Flow Rate |
2.2 L/min. |
| Unit Size |
Each |
