This personal aerosol instrument provides both real-time results and gravimetric validation.
Product Overview

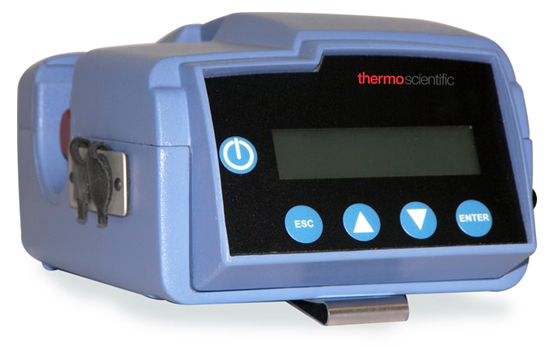

The Thermo Scientific™ Personal DataRAM™ pDR-1500 Portable Monitor is a fully integrated, real-time, high-precision sampling instrument designed for ease of use and extended operating time.
The pDR-1500 delivers the flexibility and performance needed for applications such as construction and demolition projects, health effects studies, and site remediation monitoring. Weighing 41 ounces, it is easy to operate either in a fixed location or worn on a belt.
Equipped with legacy pDR nephelometry technology, the pDR-1500 includes features such as pressure compensation, true volumetric flow, and relative humidity compensation, allowing it to adjust for typical environmental variables.
In addition, the pDR-1500 aerosol monitor includes an integrated sample filter for post-gravimetric validation of all data, and interchangeable cyclones that offer precise particle cut-points for PM2.5 & PM1 or PM10 & PM4.
Key Features
- Full compensation for environmental variables
- True volumetric flow control
- Flexible data logging routine
Additional Information
- Aerodynamic Particle Cut-Point Range: 1.0 to 10 μm
- Concentration Display Updating Interval: 1 second
- Data Logging Averaging Periods (user-selectable): 1 second to 1 hour
- Total Number of Data Points in Memory: >500,000
- Number of Data Tags: Up to 99
- Serial Interface: USB/RS-232, 19,200 baud
- Computer Requirements: PC-compatible, 486 processor or higher; Windows™ 95 or newer or higher
Recommended For
- Exposure modeling
- Site remediation
- Size discrimination
- Mass validation
- Protection of asthma patients
Specifications
Source: Thermo Scientific - Chemical Analysis Production Process and Analytics
| |
| Accuracy |
±5 % of reading ± precision (traceable to SAE Fine Test Dust) |
| Aerodynamic Particle Cut-Point Range |
1.0 to 10 μm |
| Certifications/Compliance |
Suitable for NIOSH Methods 0500 and 0600. CE marked. UKCA |
| Concentration Display Averaging Time |
1 to 60 seconds (user selectable) |
| Concentration Display Updating Interval |
1 second |
Concentration
Measurement Range |
0.001 to 400 mg/m3 range (auto ranging)1 |
| Data Points |
>500,000 |
| Depth (English) |
3.3 in. |
| Depth (Metric) |
84 mm |
| Description |
personalDataRAM pDR-1500 Aerosol Monitor |
| Height (English) |
7.1 in. |
| Height (Metric) |
181 mm |
| Particle Size Range |
0.1 to 10µm |
| Precision |
±2 % of reading or ±0.005 mg/m3, whichever is larger, for 1 second (2-sigma)2 averaging time, ±0.5 % of reading or ±0.0015 mg/m3, whichever is larger, for 10 second averaging time, ±0.2 % of reading or ±0.0005 mg/m3, whichever is larger, for 60 second averaging time |
| Resolution |
0.1 % of reading or 0.001 mg/m3, whichever is larger |
Scattering Coefficient
Range |
1.5 x 10-6 to 0.6 m-1 (approx.) @ lambda= 880 nm (not displayed) |
| Weight (English) |
41 oz. |
| Weight (Metric) |
1.2 kg |
| Width (English) |
5.6 in. |
| Width (Metric) |
143 mm |
| Flow Rate |
1 to 3.5 L/min. |
| Unit Size |
Each |
