Get 24/7 access to your analyzer's information with the iQ Series Gas Analyzer. Designed to become smarter over time, iQ Series Gas Analyzers help reduce troubleshooting time with a highly accurate and durable solution.

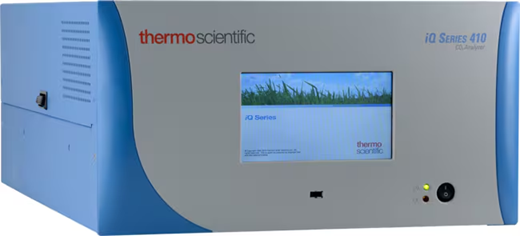

Using cutting-edge NDIR optical filter technology, the Thermo Scientific™ 410iQ Carbon Dioxide Gas Analyzer (CO2 analyzer) offers the same level of performance when measuring the concentration of carbon dioxide (CO2) in emissions.
Experience the continuous intelligence of the iQ Series Gas Analyzer - now backed by a two-year warranty. The next-generation gas analyzer platform consists of:
Predictive Diagnostics
Plug-and-play components and enhanced serviceability help prevent issues before they occur. With 24/7 access to analyzer data, troubleshooting time is reduced through the use of interchangeable DMC modules in a highly accurate and durable system.
Proactive Communications
iQ360 and email alerts support consistent performance. When subscribed to iQ360, the instrument automatically notifies the technical support team upon alarm activation. A corrective plan is then developed and sent to staff via email. Reduce unexpected issues with the iQ Series Gas Analyzers.
Personal Device Connectivity
The iQ companion mobile app enables continuous, real-time remote monitoring. The app allows users to monitor iQ gas analyzers, access maintenance alerts, communicate easily, and retrieve product documentation from a mobile device.
Specifications
Source: Thermo Scientific - Chemical Analysis Production Process and Analytics
| |
| Certifications/Compliance |
CE, TUV-SUD Safety, UKCA |
| Communication Ports |
Serial ports:
1 RS-232/485 port;
1 RS-485 external accessory port
Other ports:
3 Full Speed USB ports (one in front, two in rear)
1 Gigabit ethernet port
|
| Communication Protocols |
MODBUS, Streaming, Gesytec (Bayern-Hessen) |
| Depth (English) |
24 in. |
| Depth (Metric) |
609 mm |
| Description |
410iQ Carbon Dioxide Gas Analyzer |
| Detection Limit |
1.0 ppm (60 second averaging time) |
| Electrical Requirements |
100-240 VAC 50/60 Hz, 275 Watts |
| Height (English) |
8.72 in. |
| Height (Metric) |
221.48 mm |
| Measurement Range |
0—10000 ppm |
| Outputs |
6 Isolated analog voltages outputs, with 4 selectable ranges
6 Isolated analog current outputs, with 2 selectable ranges; 8 Solenoid driver outputs
10 Digital reed relay contact outputs |
| Precision |
+/- 1.0 % of reading |
| Voltage |
100/240 V |
| Weight (English) |
31.3 lb. (Standard), 30.1lb. (High Level) |
| Weight (Metric) |
14.2 kg (standard), 13.7 (high level) |
| Width (English) |
16.75 in. |
| Width (Metric) |
424.45 mm |
| Zero Drift |
±1.0 ppm (24 hour) |
| Detectable Analytes |
Carbon Dioxide |
| Flow Rate |
1.0 L/min. (1 atm inlet pressure) |
| Inputs |
4 Isolated Voltage Inputs 0 to 10 V, 16 Digital Inputs (TTL) |
| Linearity |
±1.5 % of span (at concentrations of 10 to 100 % of span) |
| Response Time |
90 sec. (30 sec. average time) |
| Span Drift |
±2 % of reading (24 hr.) |
| Temperature (English) Operating |
41 °F to 113 °F |
| Temperature (Metric) Operating |
5 °C to 45 °C |
| Zero Noise |
0.5 ppm RMS (60 sec. averaging time) |
| Unit Size |
Each |
