The Thermo Scientific™ 43iQ Series Gas Analyzer provides access to analyzer data at any time.
An iQ Series Gas Analyzer offers real-time access to analyzer data. The iQ Series Gas Analyzers are designed to become more intelligent over time and reduce troubleshooting time by offering a durable yet highly accurate solution.

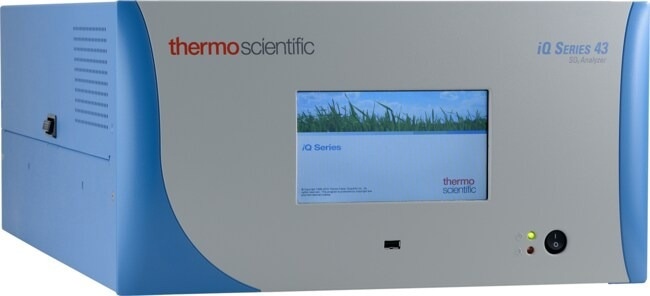

The Thermo Scientific™ 43iQ Sulfur Dioxide Analyzer uses pulsed fluorescence technology to measure sulfur dioxide (SO2) in ambient air, up to 100 ppm, with consistent performance.
Experience the continuous intelligence of the iQ Series Gas Analyzer, now backed by a two-year warranty. Key features of this next-generation gas analyzer platform include:
Predictive Diagnostics
Resolve issues before they occur using plug-and-play components and improved serviceability. With 24/7 access to analyzer data, troubleshooting time is reduced through the use of innovative, interchangeable DMC modules in a highly precise and robust solution.
Proactive Communications
Maintain optimal performance with iQ360 and email alerts. When iQ360 service is active, the instrument automatically communicates with the technical support team upon alarm activation. The support team then develops a corrective plan and sends it to staff via email.
The iQ Series Gas Analyzers help eliminate surprises and keep operations running smoothly.
Personal Device Connectivity
The iQ companion mobile app enables real-time, continuous remote monitoring. The app provides easy access to iQ gas analyzer data, facilitates communication, and allows instant viewing of maintenance alerts and product documentation.
Specifications
Source: Thermo Scientific - Chemical Analysis Production Process and Analytics
| |
| Detectable Analytes |
Sulfur Dioxide |
| Flow Rate |
0.5 L/min. |
| Inputs |
4 Isolated Voltage Inputs 0 to 10 V, 16 Digital Inputs (TTL) |
| Linearity |
±1 % full scale |
| Response Time |
60 sec. (10 sec. average time),
110 sec. (60 sec. average time),
320 sec. (300 sec. average time) |
| Span Drift |
±0.5 % full scale (24 hr.) |
| Temperature (English) Operating |
32 °F to 113 °F |
| Temperature (Metric) Operating |
0 °C to 45 °C |
| Zero Noise |
1.0 ppb RMS (10 sec. averaging time), 0.5 ppb RMS (60 sec. averaging time),0.25 ppb RMS (300 sec. averaging time) |
| Certifications/Compliance |
CE, TUV-SUD Safety, US EPA: EQSA-0486-060, UKCA |
| Communication Ports |
Serial ports:
1 RS-232/485 port
1 RS-485 external accessory port
Other ports:
3 Full speed USB ports (one in front, two in rear)
1 Gigabit ethernet port
|
| Communication Protocols |
MODBUS, streaming |
| Depth (English) |
24 in. |
| Depth (Metric) |
609 mm |
| Description |
43iQ Sulfur Dioxide Analyzer |
| Detection Limit |
2 ppb (10 second averaging time)
1 ppb (60 second averaging time)
0.25 ppb (300 second averaging time) |
| Electrical Requirements |
100-240 VAC 50/60 Hz, 275 Watts |
| Height (English) |
8.72 in. |
| Height (Metric) |
221.48 mm |
| Interferences |
(EPA Levels) Less than lower detectable limit except for the following:NO < 3 ppb, M-Xylene < 1 ppb, H2O < 3 % of reading |
| Measurement Range |
0-10 ppm, 0-25 mg/m3;
Extended: 0 to 100 ppm, 0 to 250 mg/m3 |
| Outputs |
6 isolated analog voltages outputs, with 4 selectable ranges
6 isolated analog current outputs, with 2 selectable ranges; 8 solenoid driver outputs
10 digital reed relay contact outputs |
| Precision |
1 % of reading or 1 ppb (whichever is greater) |
| Weight (English) |
37.1 lb. |
| Weight (Metric) |
16.8 kg |
| Width (English) |
16.75 in. |
| Width (Metric) |
424.45 mm |
| Zero Drift |
<0.5 ppb (24 hour) |
| Unit Size |
Each |
