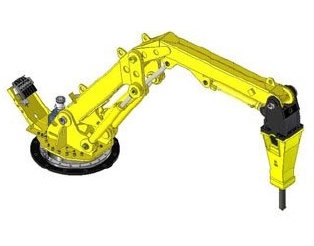

Atlas Copco Offers RB500 XD Pedestal Boom for Extreme Duty Applications

Atlas Copco offers the RB500 XD pedestal boom, which is specifically designed for extreme duty grizzly applications. This two section boom has a horizontal reach of approximately 4.16 m and includes the AutoLube automatic boom lubrication system and the SlewDevice with 270 degree rotation.

Key Features

The product features of the RB500 XD pedestal boom are:

  • SB552 or SB452 or breaker enhances productivity
  • AutoLube automatic boom lubrication system increases boom’s life expectancy and reduces maintenance
  • SlewDevice with 270 degree rotation provides optimum reach and ease of maintenance


The specifications of the RB500 XD pedestal boom are provided in the table below:

Duty Extreme
Application Grizzly
Horizontal reach (breaker vertical), max 4.2 m
Vertical reach (excluding breaker), max 1.8 m
Swing 270
Number of boom sections 2
Power pack 35 kW
Radial raking depending on reach, max at 2 m 637 - 1275 kg
Axial raking 700 kg
Operating mass excluding breaker, Power pack and control console 3266 kg
Recommended breaker weight 400 - 550 kg
Hydraulic breaker
SB452, SB552
