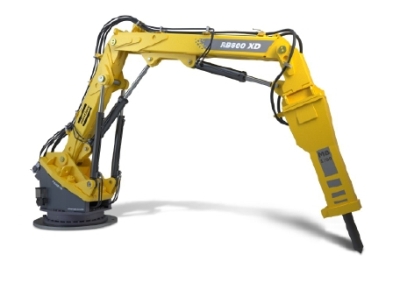

Extreme Duty Pedestal Boom: RB600 XD by Atlas Copco

The RB600 XD is designed by Atlas Copco which is suitable for extreme duty grizzly applications. It is a two-section boom, and has a horizontal reach of about 5.4 m.

Key Features

The key features of the RB600 XD are:

  • FlexiBase shock and vibration absorbing system for ensuring maximum life expectancy
  • The RB600 XD includes SlewDevice with 270 degree rotation for achieving easy maintenance and maximum reach
  • MB750, MB1000, MB1200, MB1500 or MB1700 breaker is provided for increasing the productivity
  • AutoLube automatic boom lubrication system for increasing service life of the boom and ensuring less maintenance.

Specifications

The specifications of the RB600 XD are given in the following table.

Duty Extreme
Recommended breaker weight 750 - 1700 kg
Power pack 55 - 75 kW
Horizontal reach (breaker vertical), max 5.4 m
Vertical reach (excluding breaker), max 1 m
Radial raking depending on reach, max at 2 m 905 - 2720 kg
Operating mass excluding breaker, Power pack and control console 9340 kg
Swing 270
Application Grizzly
Number of boom sections
2
